The Art of Blog Pothole Repair, Part 2
Blog Entry #373

Bringing back my images via Blogger's file-upload mechanism and a smattering of basic HTML was low-hanging fruit. Restoring my demos was a whole 'nother kettle of fish.

About a year and a half into my blogging career I hit on the idea that I could use iframes to display externally hosted demos. I would form a demo as a complete .html document: the renderable stuff would go in the <body>; the JavaScript would usually go in the <head>, on occasion the <body>; if present, a style sheet would go in the <head>. Next, I uploaded the document to my EarthLink server space with the Fetch application. Lastly, I loaded the document into an iframe in a Blogger post by assigning the document's URL to the value of the iframe's src attribute.

<iframe width="50%" height="300" src="" frameborder="1" scrolling="no">Your browser does not support iframes - the demo and the script it imports can be accessed via the links below.</iframe>

As shown, I further kitted out the iframe with width and height settings* and sometimes frameborder and scrolling settings as appropriate. My first iframe-framed demo appeared in Blog Entry #59.
(*On my computer, the content+padding area of an iframe without width and height attributes measures 300px by 150px.)

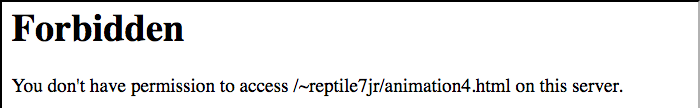

These demos were replaced by a Forbidden message when I lost them in the wake of parting ways with EarthLink, e.g.:

The 'Forbidden' message for the lost demo of Blog Entry #210

At least my lost images left behind some alt text:

HTML Goodies banner

As you can imagine, folks, I got sick and tired of looking at those Forbiddens, so I decided to do something about it. Blogger will host for its bloggers image and video files but shamefully not .html documents (it won't host .js scripts or .css style sheets either, in case you were wondering). Fortunately, recasting my demos as endogenous blocks of code - the obvious remedy - proved straightforward most of the time.

The obvious choice of 'canvas' for an intrapost demo is a div element, which
(a) is not only a suitable frame replacement for an iframe but also
(b) serves ably as a proxy for the <body> of the document we would have loaded into the iframe.

We can give a div a custom width, height, and border; we can give it scrollbars if necessary via a suitable overflow setting. Per its starting i, an iframe has an inline rendering; a div normally has a block-level rendering, but we can give it an inline rendering and still hold onto its other block-level capabilities by giving it an inline-block display.

In HTML5 the body and div elements both have a flow content content model, i.e., their immediate children can be just about anything - <p>s and <h#>s and all other textual elements, <img>s and other <object>s, <form>s and their controls, <tables>s, <ul>s and <ol>s - only a small handful of non-renderable elements are off-limits. (The situation is slightly more restrictive in HTML 4, I'll spare you the details.)

The body and div elements can parent the script element, so we can put the <script> for an intrapost demo inside the div container, but we can put it outside the div too à la an external script: its location doesn't matter as long as it doesn't hold any top-level code that references one or more later elements in the source - if it does hold such code, we'll need to place it after the referred-to element(s), of course.

The body and div elements can't contain the style element, however. The easiest way to re-effect the <style> rules of my demos was to recast them as inline styles, so that's what I did - I wasn't happy about doing this, but a blogger's gotta do what a blogger's gotta do. N.B. Styles for pseudo-elements and pseudo-classes can't be set via the inline style attribute mechanism although they can be set JavaScriptically via the insertRule( ) method of the Style DOM's CSSStyleSheet interface, e.g.:

var last_styleSheet = document.styleSheets[document.styleSheets.length - 1];
last_styleSheet.insertRule(":active { color: lime; }", last_styleSheet.cssRules.length);

If a demo features absolutely positioned elements, then the div container must be position:relative;-ed in order to make it the containing block for those elements.

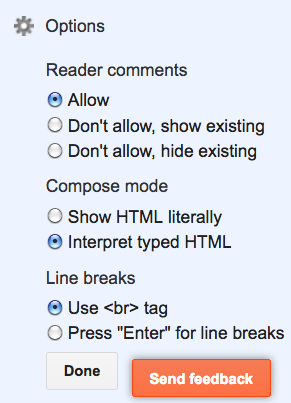

The Options panel and its Line breaks settingsPasting a retooled demo into an existing post sometimes caused the after-the-demo end-of-line white space to collapse: as far as I can tell, this is an artifact of the
Press "Enter" for line breaks
Line breaks Options setting. I had to reach into my bag of spacing tricks to regenerate the original formatting, specifically:
(1) I placed a <div>&nbsp;</div> between the demo div and the following text so as to recreate the empty line box that originally separated them;
(2) I wrapped the subsequent inline content in one or more <span style="white-space:pre-line;">s to bring back the remaining newlines.
Serves me right for letting Blogger space my posts for me, eh? Lesson learned: From here on out I'll be coding my own <br />s per the
Use <br> tag
mode of operation.

Moreover, Blogger has an annoying practice of inserting newlines immediately after the start tags and end tags of block-level elements, which can kill a demo script if that script writes out block-level elements with document.write( ) commands. (SyntaxError! Unterminated string literal!) Converting such commands to corresponding createElement( )/appendChild( ) DOM operations will avoid this problem.

One more point: As Firefox, Google Chrome, Opera, and Safari all apply an 11px margin-top and an 8px margin-left to the <body>, I often apply an 8px padding to the demo div.
I've actually got a bit more to say about demos and iframes - let me save it for the next entry.
